[Android] 버튼 클릭시 이미지 바꾸기

소스코드

MainActivity.java

package org.techtown.framelayout;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;

public class MainActivity extends AppCompatActivity {
    ImageView imageView;
    ImageView imageView2;

    int imageIndex = 0;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        imageView = findViewById(R.id.imageView);
        imageView2 = findViewById(R.id.imageView2);

    }

    public void onButton1Clicked(View v){
        changeImage();
    }

    public void changeImage(){

        if(imageIndex == 0){
            imageView.setVisibility(View.VISIBLE);
            imageView2.setVisibility(View.INVISIBLE);
            imageIndex = 1;
        }

        else if(imageIndex == 1){
            imageView.setVisibility(View.INVISIBLE);
            imageView2.setVisibility(View.VISIBLE);
            imageIndex = 0;
        }

    }

}



activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity" >

    <Button
        android:id="@+id/button"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:onClick="onButton1Clicked"
        android:text="이미지 바꾸기" />

    <FrameLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <ImageView
            android:id="@+id/imageView"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:visibility="invisible"
            app:srcCompat="@drawable/dream01" />

        <ImageView
            android:id="@+id/imageView2"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:visibility="visible"
            app:srcCompat="@drawable/dream02" />
    </FrameLayout>
</LinearLayout>

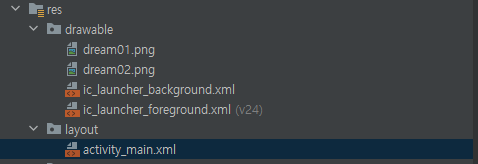

이미지 2개 아무거나 저장후 drawable 폴더에 넣기

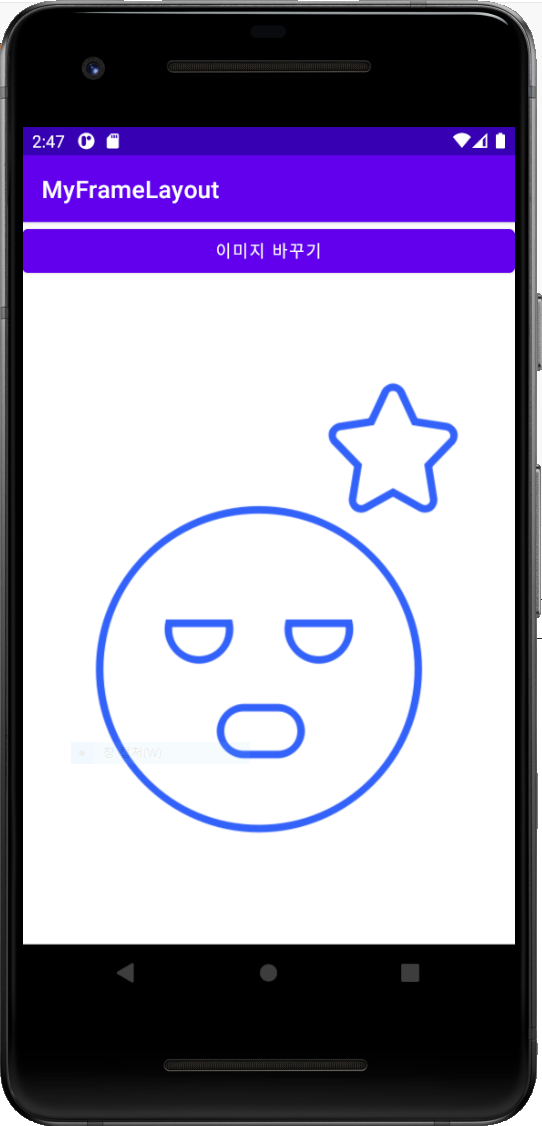

결과화면

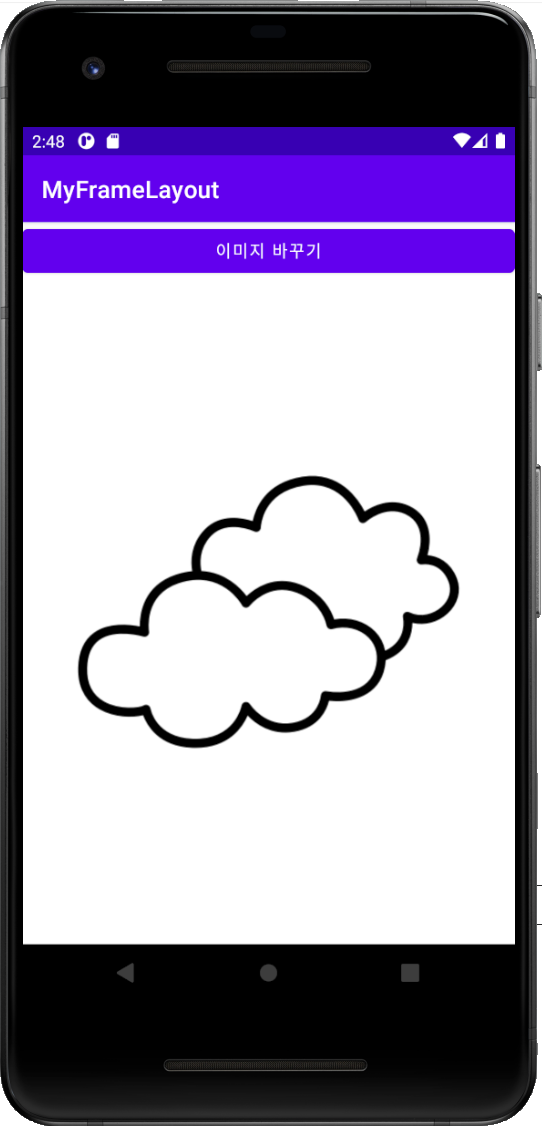

이미지 바꾸기 클릭시



-> 버튼클릭시 이미지가 dream01, dream02 이미지가 왔다갔다 바뀌는걸 볼수있음
