[LeafletJs] GeoJson 예제

LeafletJs

- GeoJson

- GeoJSON은 다양한 지리 데이터 구조 […]를 인코딩하기 위한 형식입니다. GeoJSON 객체는 공간 영역(Geometry), 공간적으로 제한된 엔터티(Feature) 또는 기능 목록(FeatureCollection)을 나타낼 수 있습니다. GeoJSON은 Point, LineString, Polygon, MultiPoint, MultiLineString, MultiPolygon 및 GeometryCollection과 같은 지오메트리 유형을 지원합니다. GeoJSON의 기능에는 Geometry 개체 및 추가 속성이 포함되고 FeatureCollection에는 기능 목록이 포함됩니다.



-geoJson.html

<!DOCTYPE html>
<html>
<head>
	<title>GeoJSON tutorial - Leaflet</title>
	<meta charset="utf-8" />
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<link rel="shortcut icon" type="image/x-icon" href="docs/images/favicon.ico" />
    <link rel="stylesheet" href="https://unpkg.com/leaflet@1.7.1/dist/leaflet.css" integrity="sha512-xodZBNTC5n17Xt2atTPuE1HxjVMSvLVW9ocqUKLsCC5CXdbqCmblAshOMAS6/keqq/sMZMZ19scR4PsZChSR7A==" crossorigin=""/>
    <script src="https://unpkg.com/leaflet@1.7.1/dist/leaflet.js" integrity="sha512-XQoYMqMTK8LvdxXYG3nZ448hOEQiglfqkJs1NOQV44cWnUrBc8PkAOcXy20w0vlaXaVUearIOBhiXZ5V3ynxwA==" crossorigin=""></script>

	<style>
		html, body {
			height: 100%;
			margin: 0;
		}
		#map {
			width: 600px;
			height: 400px;
		}
	</style>


</head>
<body>

<div id='map'></div>

<script src="sample-geojson.js" type="text/javascript"></script>

<script>
	var map = L.map('map').setView([37.564388, 126.9757184], 13);

	L.tileLayer('https://api.mapbox.com/styles/v1/{id}/tiles/{z}/{x}/{y}?access_token=pk.eyJ1IjoibWFwYm94IiwiYSI6ImNpejY4NXVycTA2emYycXBndHRqcmZ3N3gifQ.rJcFIG214AriISLbB6B5aw', {
		maxZoom: 18,
		attribution: 'Map data &copy; <a href="https://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors, ' +
			'Imagery © <a href="https://www.mapbox.com/">Mapbox</a>',
		id: 'mapbox/light-v9',
		tileSize: 512,
		zoomOffset: -1
	}).addTo(map);

	var baseballIcon = L.icon({
		iconUrl: 'baseball-marker.png',
		iconSize: [32, 37],
		iconAnchor: [16, 37],
		popupAnchor: [0, -28]
	});

	function onEachFeature(feature, layer) {
		var popupContent = "<p>I started out as a GeoJSON " +
				feature.geometry.type + ", but now I'm a Leaflet vector!</p>";

		if (feature.properties && feature.properties.popupContent) {
			popupContent += feature.properties.popupContent;
		}

		layer.bindPopup(popupContent);
	}

	L.geoJSON([bicycleRental, campus], {

		style: function (feature) {
			return feature.properties && feature.properties.style;
		},

		onEachFeature: onEachFeature,

		pointToLayer: function (feature, latlng) {
			return L.circleMarker(latlng, {
				radius: 8,
				fillColor: "#ff7800",
				color: "#000",
				weight: 1,
				opacity: 1,
				fillOpacity: 0.8
			});
		}
	}).addTo(map);

	L.geoJSON(freeBus, {

		filter: function (feature, layer) {
			if (feature.properties) {
				// If the property "underConstruction" exists and is true, return false (don't render features under construction)
				return feature.properties.underConstruction !== undefined ? !feature.properties.underConstruction : true;
			}
			return false;
		},

		onEachFeature: onEachFeature
	}).addTo(map);

	var coorsLayer = L.geoJSON(coorsField, {

		pointToLayer: function (feature, latlng) {
			return L.marker(latlng, {icon: baseballIcon});
		},

		onEachFeature: onEachFeature
	}).addTo(map);

</script>



</body>
</html>



- sample-geojson.js

var freeBus = {
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "geometry": {
                "type": "LineString",
                "coordinates": [
					//위도, 경도
                    [126.9757184, 37.564388],
                    [126.9748523, 37.5796212]
                ]
            },
            "properties": {
                "popupContent": "This is a free bus line that will take you across downtown.",
                "underConstruction": false
            },
            "id": 1
        }
    ]
};

var lightRailStop = {
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "properties": {
                "popupContent": "18th & California Light Rail Stop"
            },
            "geometry": {
                "type": "Point",
                "coordinates": [126.9757184, 37.564388]
            }
        },{
            "type": "Feature",
            "properties": {
                "popupContent": "20th & Welton Light Rail Stop"
            },
            "geometry": {
                "type": "Point",
                "coordinates": [126.9748523, 37.5796212]
            }
        }
    ]
};

//위도, 경도
var bicycleRental = {
    "type": "FeatureCollection",
    "features": [
        {
            "geometry": {
                "type": "Point",
                "coordinates": [
                   126.9757184,
                   37.564388
                ]
            },
            "type": "Feature",
            "properties": {
                "popupContent": "This is a B-Cycle Station. Come pick up a bike and pay by the hour. What a deal!"
            },
            "id": 51
        },
        {
            "geometry": {
                "type": "Point",
                "coordinates": [
                    126.9748523,
                    37.5796212
                ]
            },
            "type": "Feature",
            "properties": {
                "popupContent": "This is a B-Cycle Station. Come pick up a bike and pay by the hour. What a deal!"
            },
            "id": 52
        },
        {
            "geometry": {
                "type": "Point",
                "coordinates": [
                    126.9675142,
                    37.5683144
                ]
            },
            "type": "Feature",
            "properties": {
                "popupContent": "This is a B-Cycle Station. Come pick up a bike and pay by the hour. What a deal!"
            },
            "id": 53
        }
    ]
};

var campus = {
    "type": "Feature",
    "properties": {
        "popupContent": "This is the Auraria West Campus",
        "style": {
            weight: 2,
            color: "#999",
            opacity: 1,
            fillColor: "#B0DE5C",
            fillOpacity: 0.8
        }
    },
    "geometry": {
        "type": "MultiPolygon",
        "coordinates": [
            [
                [
                    [126.9757184, 37.564388],
                    [126.9748523, 37.5796212],
                    [126.9675142, 37.5683144]
                ],

                [
                    [126.9193239, 37.5556437],
                    [126.9446452, 37.561863],
                    [126.9623035, 37.5625921]
                ]
            ]
        ]
    }
};

var coorsField = {
    "type": "Feature",
    "properties": {
        "popupContent": "Coors Field"
    },
    "geometry": {
        "type": "Point",
        "coordinates": [126.9711649, 37.5597184]
    }
};

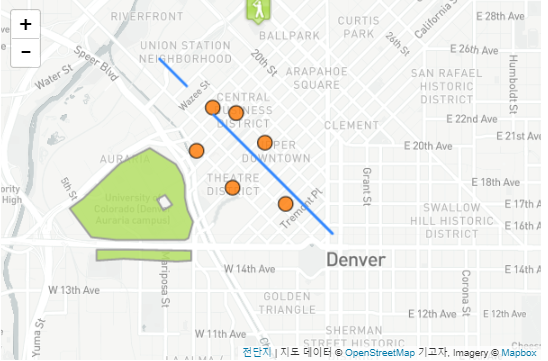

https://leafletjs.com/examples/geojson/example.html



GeoJSON tutorial - Leaflet



leafletjs.com

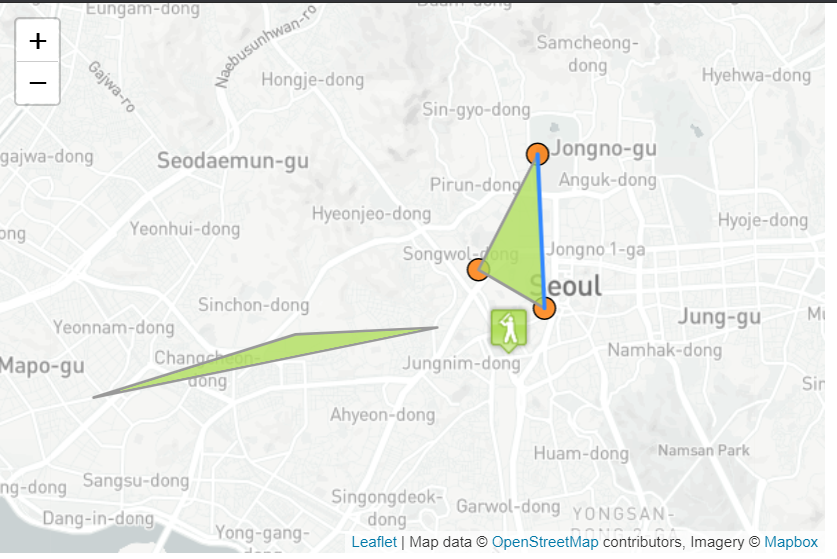

-소스 설명

var map = L.map('map').setView([37.564388, 126.9757184], 13);

	L.tileLayer('https://api.mapbox.com/styles/v1/{id}/tiles/{z}/{x}/{y}?access_token=pk.eyJ1IjoibWFwYm94IiwiYSI6ImNpejY4NXVycTA2emYycXBndHRqcmZ3N3gifQ.rJcFIG214AriISLbB6B5aw', {
		maxZoom: 18,
		attribution: 'Map data &copy; <a href="https://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors, ' +
			'Imagery © <a href="https://www.mapbox.com/">Mapbox</a>',
		id: 'mapbox/light-v9',
		tileSize: 512,
		zoomOffset: -1
	}).addTo(map);

해당 경도, 위도, 줌 level의 지도를 생성함



var baseballIcon = L.icon({
		iconUrl: 'baseball-marker.png',
		iconSize: [32, 37],
		iconAnchor: [16, 37],
		popupAnchor: [0, -28]
	});

    var coorsLayer = L.geoJSON(coorsField, {

		pointToLayer: function (feature, latlng) {
			return L.marker(latlng, {icon: baseballIcon});
		},

		onEachFeature: onEachFeature
	}).addTo(map);
var coorsField = {
    "type": "Feature",
    "properties": {
        "popupContent": "Coors Field"
    },
    "geometry": {
        "type": "Point",
        "coordinates": [126.9711649, 37.5597184]
    }
};

- coorsField의 json을 받아 해당 위도, 경도에 해당하는 지역에 baseball-marker 아이콘을 찍음



function onEachFeature(feature, layer) {
		var popupContent = "<p>I started out as a GeoJSON " +
				feature.geometry.type + ", but now I'm a Leaflet vector!</p>";

		if (feature.properties && feature.properties.popupContent) {
			popupContent += feature.properties.popupContent;
		}

		layer.bindPopup(popupContent);
	}

- 레이어의 폴리곤, 아이콘들을 클릭했을때 팝업 표출



//포인트 동그라미 찍기, 멀티폴리곤 찍기
	L.geoJSON([bicycleRental, campus], {

		style: function (feature) {
			return feature.properties && feature.properties.style;
		},

		onEachFeature: onEachFeature,

		pointToLayer: function (feature, latlng) {
			return L.circleMarker(latlng, {
				radius: 8,
				fillColor: "#ff7800",
				color: "#000",
				weight: 1,
				opacity: 1,
				fillOpacity: 0.8
			});
		}
	}).addTo(map);
var campus = {
    "type": "Feature",
    "properties": {
        "popupContent": "This is the Auraria West Campus",
        "style": {
            weight: 2,
            color: "#999",
            opacity: 1,
            fillColor: "#B0DE5C",
            fillOpacity: 0.8
        }
    },
    "geometry": {
        "type": "MultiPolygon",
        "coordinates": [
            [
                [
                    [126.9757184, 37.564388],
                    [126.9748523, 37.5796212],
                    [126.9675142, 37.5683144]
                ],

                [
                    [126.9193239, 37.5556437],
                    [126.9446452, 37.561863],
                    [126.9623035, 37.5625921]
                ]
            ]
        ]
    }
};

해당 위도, 경도에 동그라미 포인트, 멀티폴리곤을 찍음



//선긋기
	L.geoJSON(freeBus, {

		filter: function (feature, layer) {
			if (feature.properties) {
				// If the property "underConstruction" exists and is true, return false (don't render features under construction)
				return feature.properties.underConstruction !== undefined ? !feature.properties.underConstruction : true;
			}
			return false;
		},

		onEachFeature: onEachFeature
	}).addTo(map);
var freeBus = {
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "geometry": {
                "type": "LineString",
                "coordinates": [
					//위도, 경도
                    [126.9757184, 37.564388],
                    [126.9748523, 37.5796212]
                ]
            },
            "properties": {
                "popupContent": "This is a free bus line that will take you across downtown.",
                "underConstruction": false
            },
            "id": 1
        }
    ]
};

해당 위도, 경도의 사이를 선으로 이음
